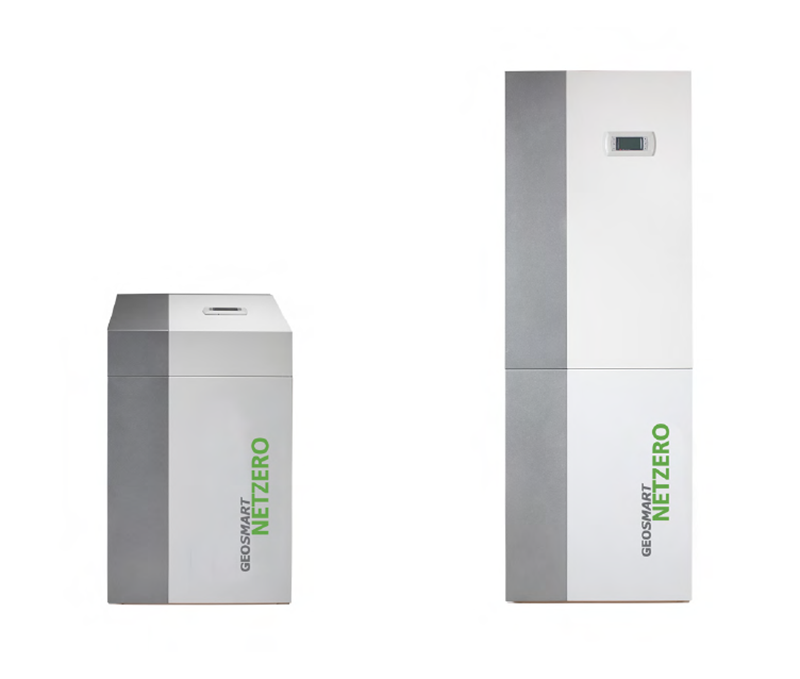

GEOSMART NetZero
GeoSmart NetZero heat pumps stand out from the competition due to their holistic control management system and physical characteristics that provide performance levels unmatched by any other hydronic geothermal product in North America.
Let's Talk!
We can help you explore geothermal heating and cooling for your business or residence.
Discover the Future of Efficient Energy With GeoSmart Net Zero Technologies
Variable Speed Hydronic Heat Pumps
Holistic NetZero control system. GeoSmart technology
GeoSmart NetZero heat pumps stand out from the competition due to their holistic control management system and physical characteristics that provide performance levels unmatched by any other hydronic geothermal product in North America.

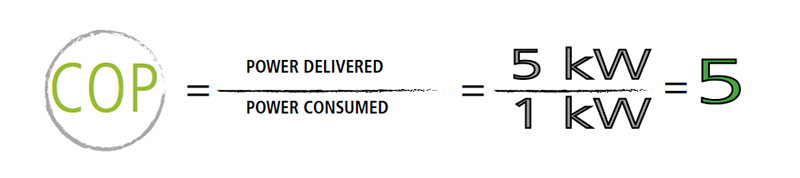

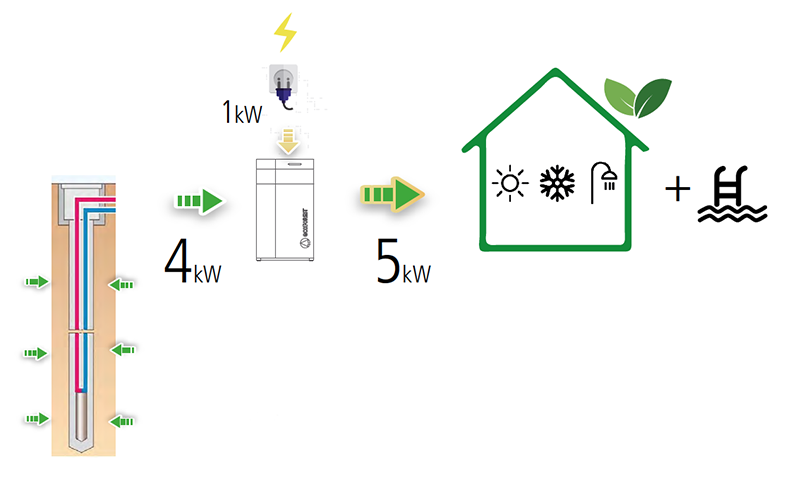

The performance, (COP, in heat mode and EER in cool mode), will be the power delivered to the home divided by the electrical power consumed by the heat pump.
Outdoor Reset Temperature Control
Possibility to operate according to the outdoor temperature. The possibility to switch between WINTER/SUMMER modes manually or automatically. The option of switching between the HEAT/COLD operating modes automatically by reading the accumulated outdoor temperature (this setting can be changed). The option of generating HEAT and/ or COLD in both summer and winter, thanks to the COMBINED mode.
Simplicity
The wide modulation range makes it possible to avoid having to install the typical buffer storage tanks in many applications.
Adaptation
The NetZero control adapts to the ideal conditions of the comfort zone, thereby enabling a rational use of the energy consumed. It provides the building with what it needs at all times.

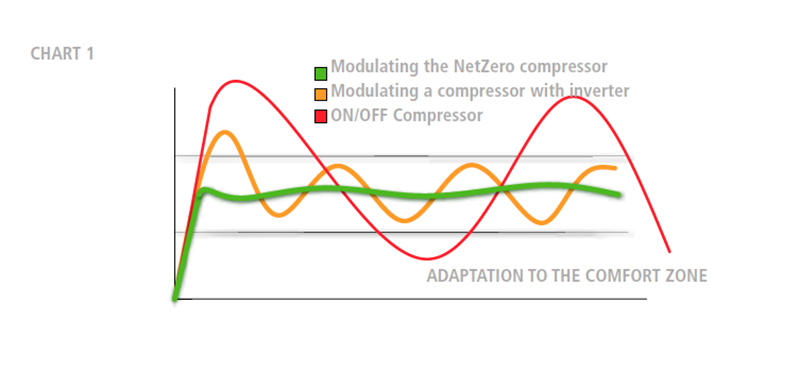

SEE CHART 1.
Software
Another significant advantage of the NetZero heat pumps by GeoSmart is that their software is designed to be user-friendly. This enables quick and easy start-ups since the customer does not need tedious technical explanations.
Management
Control of 4 outlet groups (3 shunts groups and 1 direct) in domestic NetZero installations and up to 30 groups in high-power commercial units.
- Control over the pool.
- Control over zone and modulating valves.
- Control of heaters.
- Depending on the installation.
Simultaneity
Some installations require simultaneous production of COOL+HEAT. The high power commercial NetZero range can provide this thanks to probe, valve and circulator pump control that can be used to generate the specific energy at any time and distribute excess energy to the collection circui
DHW Management
- Control of DHW recirculation.
- Simultaneous production of: COOL + HEAT.
- The compact model includes a 3/4” intake for recirculation.
- Generation of up to 70ºC with the heat pump, without electrical heaters and with HTR technology. SEE CHART 3.
- HTR: High Temperature Recovery. Increase in overall performance of the system by using more thermal energy with the same compressor consumption.
Control
The operating ranges have been optimized (operation map) to reach more operating conditions in different installations.
Metering
The heat pumps are equipped with energy and performance meters for: instantaneous, daily, monthly and annual periods.
Defrost
Our defrost technology makes us unique, since it does not need electrical heaters. An additional exchanger is enough to carry out heat exchange with the circuit of choice –the heating circuit, swimming pool circuit or DHW. This operating mode carries out defrost with a minimal effect on the comfort temperature of the service used to contribute the energy.
Modulation

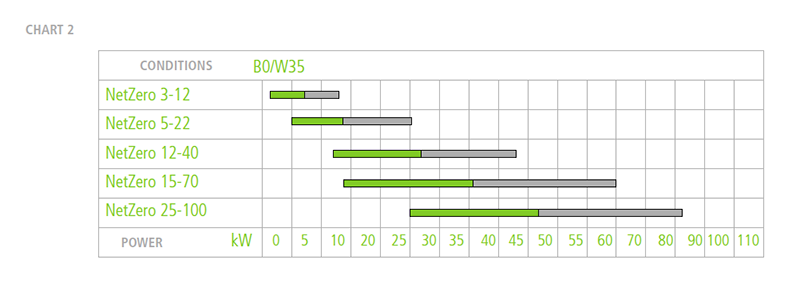

GeoSmart can provide a wide range of products to cover from 3 kW to 600 kW. In each model, the range of modulation starts as low as 25%. SEE CHART 2.
Information
The possibility of viewing all the operation and performance information is an important advantage. All the data of the refrigeration circuit, hydronics or component status, etc. can be viewed on the screen.
Hybridization
The use of this technique for collection and thermal production becomes more and more interesting every day. Essentially the NetZero can draw energy from the ground loop heat exchanger, or from an optional outdoor air to water heat exchanger. NetZero software can also be used to manage both.
Design
- The option of placing intakes at the top or rear of the equipment (residential product range).
- Condensate drain pans.
- A hydraulic system that is easy to access (residential and HP commercial product range).
- The option of using the desuperheater in the residential product range. HTR system.
- Improved acoustic insulation.
- Large pipe diameter, lower load losses.
- DIN rail mounted electrical terminals that are easy to connect.
- The residential product range is completely equipped with internal variable speed circulator pumps, load and source expansion vessels, etc.
Cascade
In HP commercial range, several heat pumps placed in “parallel” can be managed by the Supervisor control; contrary to other cascade controls, the Supervisor distributes the number of hours of operation and the point of maximum efficiency. In other words, a given amount of power is provided by several pumps running at their highest COP point, instead of a single heat pump. The residential product range can use 3 heat pumps in cascade without a supervisor.

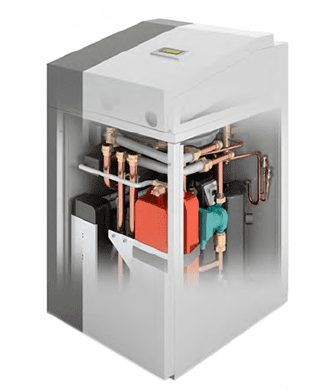

NetZero BASIC
Technical Characteristics
Power: 3- 12/5- 22 kW
COP: 4.6 / 4.9
Refrigerant: R410A
Power supply: 230V-60 Hz
Weight: 185-193 Kg
Noise level: 35 to 46 dB
Applications: Heating, DHW, Active and Passive Cooling, Pool/Spa Heating
Features
- Copeland inverter technology
- Copeland scroll compressor
- Electronic expansion valve
- Integrated variable speed circulator pumps
- Alfal Laval asymmetrical plate hx
- pCOOEM+ Carel control
- Active heating and cooling
- Passive colling, and Pool/Spa heating
- 3-way valve for heat/DHW generation
- DHW via patented HTR technology
- Built-in noise insulation kit
- WiFi option available
- Built-in energy meters

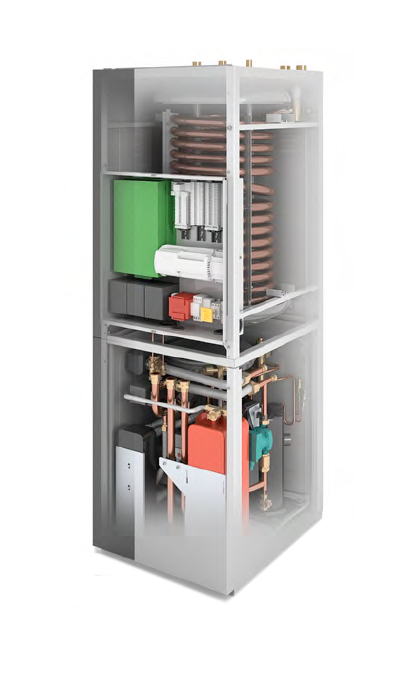

NetZero Compact
Technical Characteristics
Power: 3- 12/5- 22 kW
COP: 4,6 / 4,9
Refrigerant: R410A
Power supply: 230V-60 Hz
Weight: 247-255 Kg
Noise level: 35 to 46 dB
Applications: Heating, DHW, Active and Passive Cooling, Pool/Spa Heating
Features
- All NetZero BASIC features plus:
- Built-in 165-litre DHW stainless steel tank
- with integrated corrugated and flexible
- stainless steel helical coil indirect heat
- exchanger
